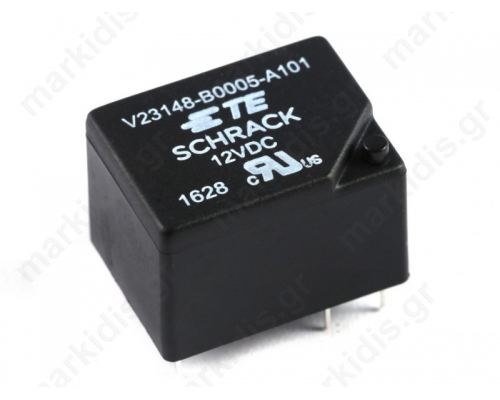

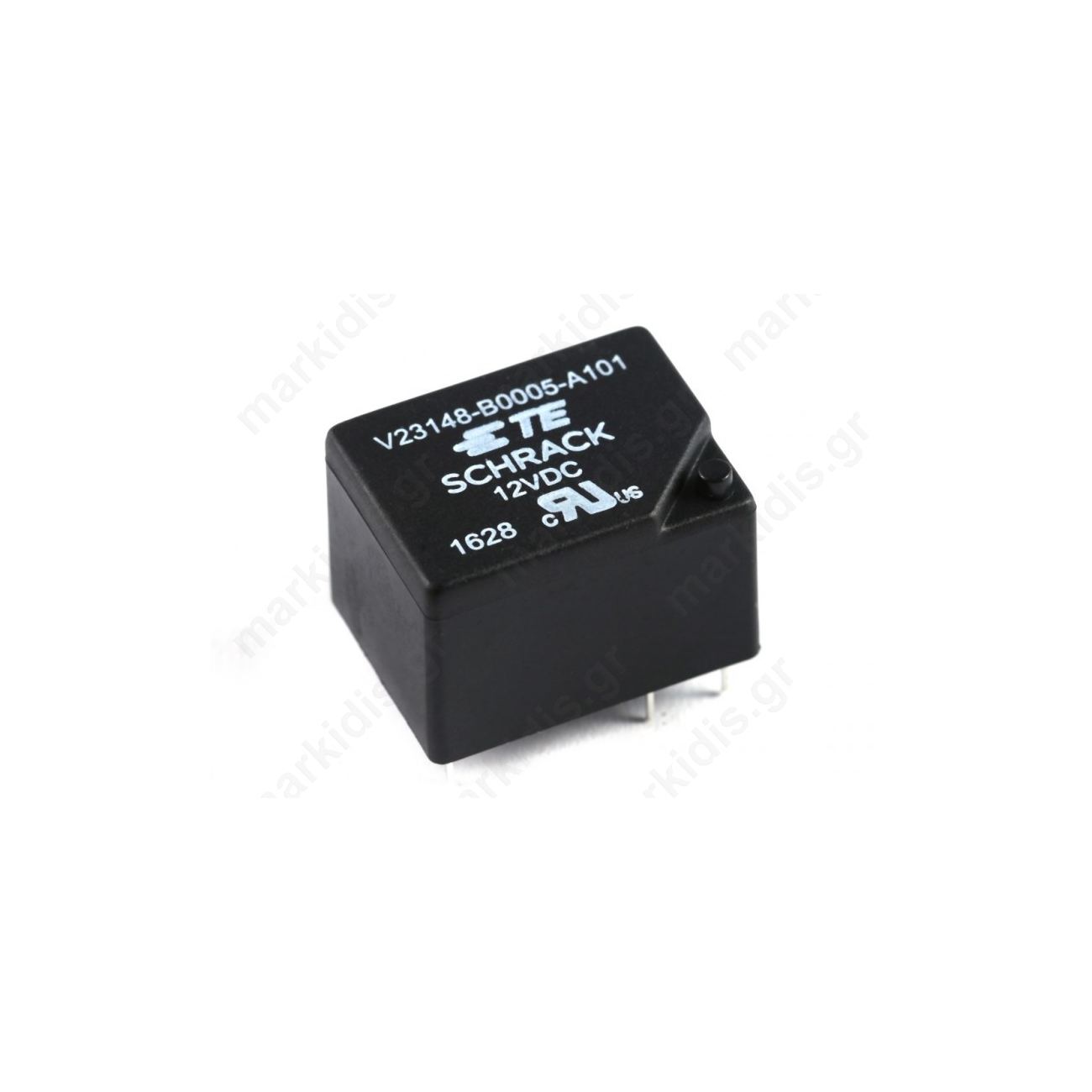

RELAY SCHRACK 12V 7A

Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
AC contacts rating @R
(at resistive load) 7A / 250V AC
DC contacts rating @R
(at resistive load) 7A / 24V DC
Contact current

Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
AC contacts rating @R
(at resistive load) 7A / 250V AC
DC contacts rating @R
(at resistive load) 7A / 24V DC
Contact current max. 7A
Switched voltage max. 60V DC, max. 400V AC
Relay variant bistable, miniature
Mounting PCB
Coil resistance 320O
Operate time 5ms
Body dimensions 21.2x16.2x14.9mm
Release time 3ms
Coil power consumption 450mW
Operating temperature -25...70°C
Relay series UB
Switching capacity 1.75kVA
Contact material AgNi 90/10
Terminal pitch 5.08mm
