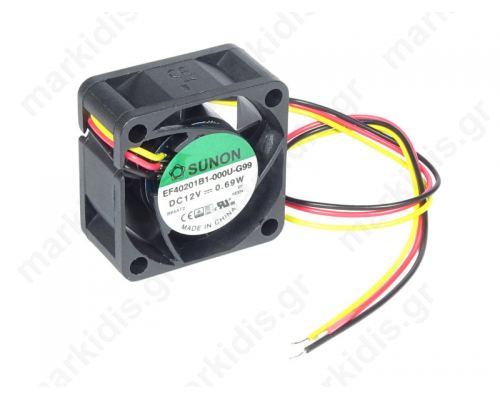

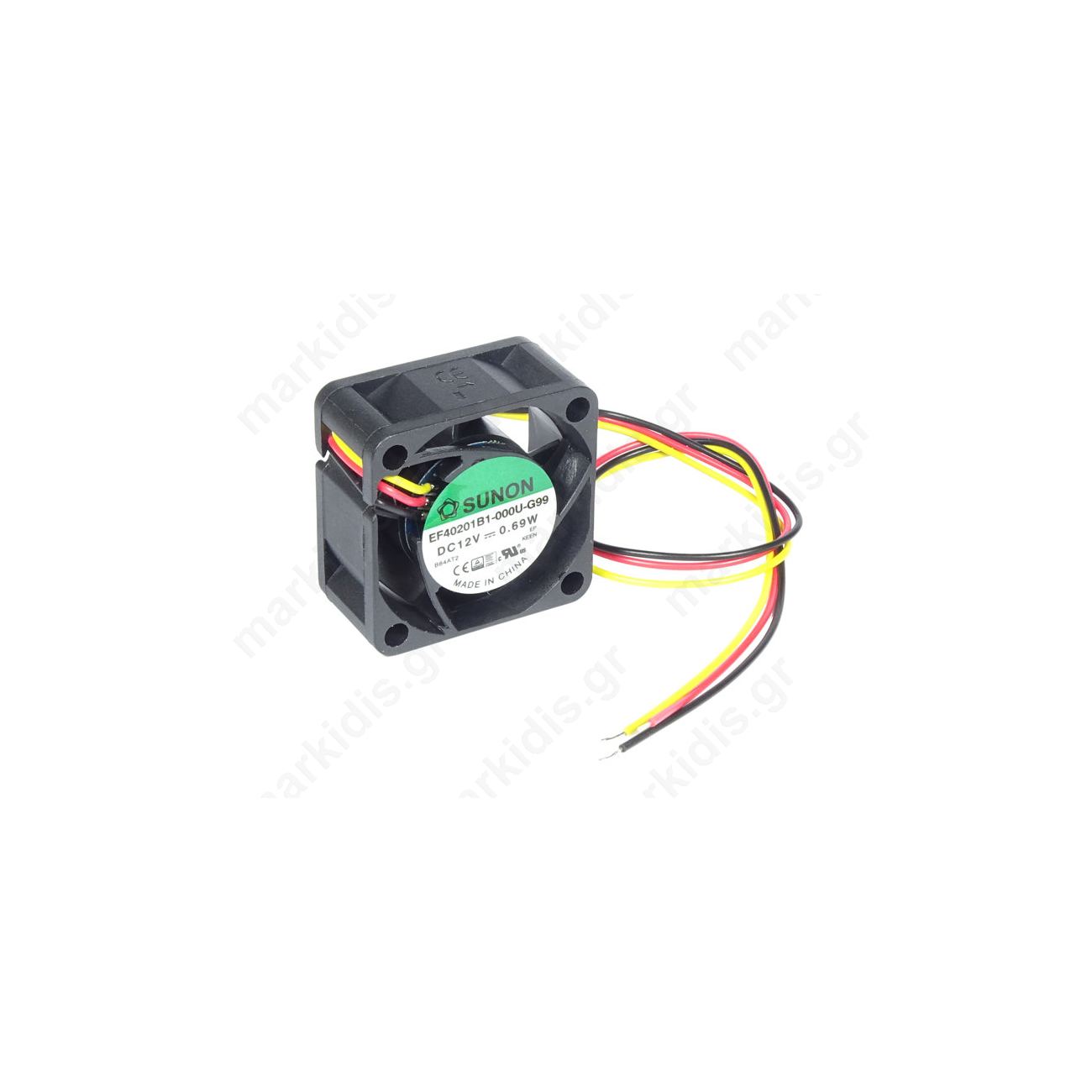

Ανεμιστήρας DC 12VDC 40x40x20mm

Manufacturer SUNON
Type of fan DC
Kind of fan axial
Supply voltage 12V DC
Fan dimensions 40x40x20mm
Power consumption 0.56W
Current rating 0.046A
Fan efficiency 15.12m3/h
Noise level 26.5dBA
Kind of Bearing ball bearing
Signal output F type
Rotational rate/speed 6300 (±15%)rpm
Weight 32.5g
Current and power consumption tolerance ±15%
Min. insulation resistance 10MO
Impeller material thermoplastic
Enclosure material thermoplastic
Insulation class A
Leads 3 leads
Operating temperature -10...70°C
Cable length 305mm
Static pressure 5.59mm H2O
Fan motor brushless DC motor
Flammability rating UL94V-0
Additional functions Autorestart
Operating voltage 4.5...13.8V
Wire size 26AWG
