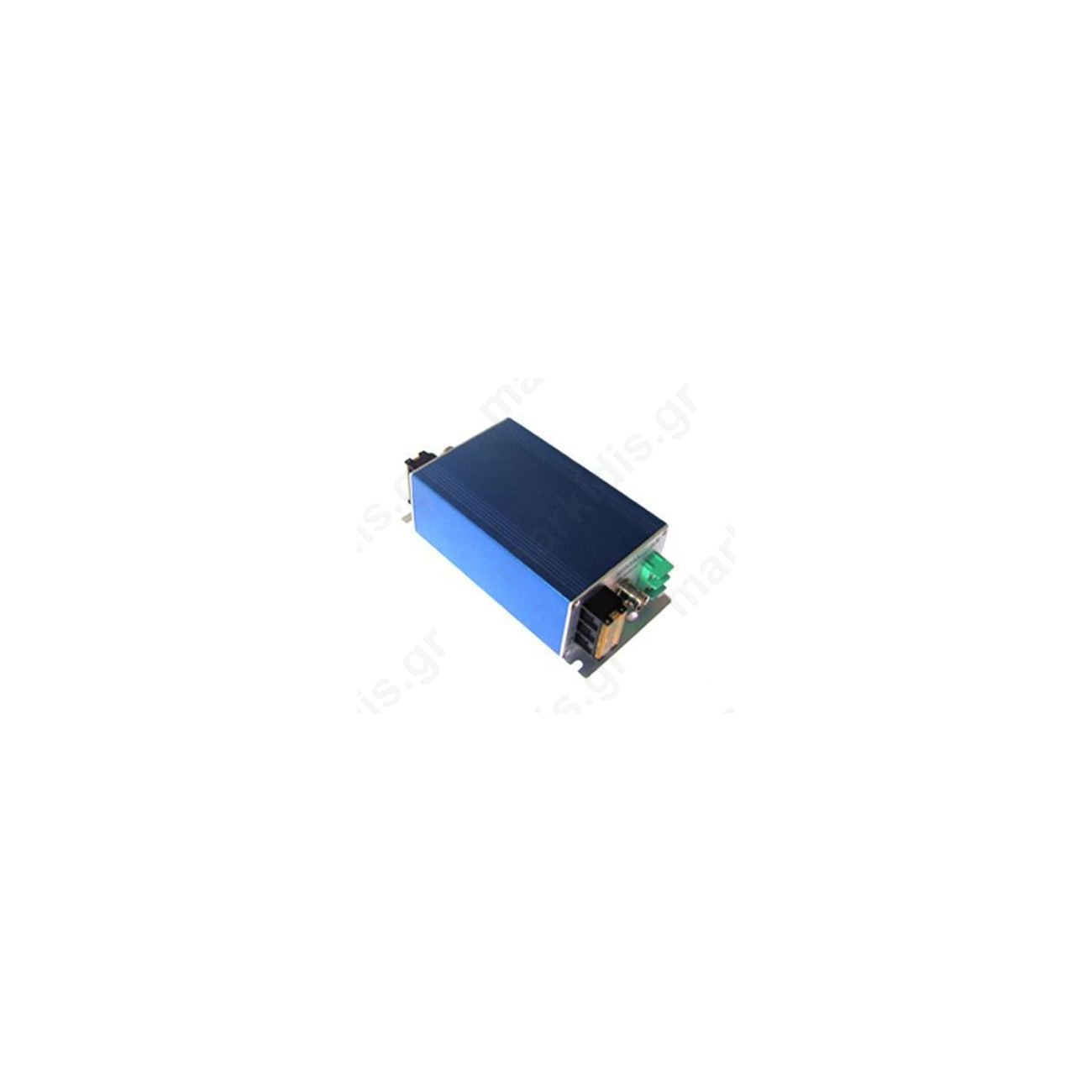

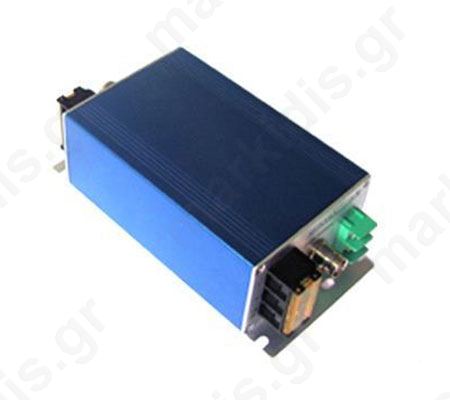

UTP VIDEO SURGE PROTECTOR SP-3001V

 Πατήστε πάνω σε οποιαδήποτε εικόνα για μεγέθυνση



      Share:

The device features multi-level protection, large capacity for through-flow, low limiting voltage, quick response time, less insertion loss.

  • Κωδικός είδους: 161070910000
  • B. Κωδ.: SP-3001V
  • Διαθεσιμότητα: Διαθέσιμο
    Σημαντικό: Για παραλαβή από το κατάστημά μας θα πρέπει πρώτα να επικοινωνήσετε τηλεφωνικά μαζί μας προς αποφυγή οποιασδήποτε ταλαιπωρίας.
45,60€ 45.6
Τιμές με Φ.Π.Α
Αγορά Wishlist Σύγκριση
Το προϊόν προστέθηκε με επιτυχία στο καλάθι
Περιγραφή είδους

The Folksafe's FS-SP3001VPD(12VDC) is a video, power and data surge protector device designed according to the standart of GB/T18802.21-2004/IEC61643-21:2000 and CCTV criteria requirements. The device features multi-level protection, large capacity for through-flow, low limiting voltage, quick response time, less insertion loss. I adapts to overvoltage protection for security video signal and power, protecting the device from the damage of induced overvoltage, switching overvoltage and static discharge. It's widely used in security monitoring system, enviroment monitoring system.



Video

Rated Working Voltage

 5V

Max Continuous Operating Voltage

8V

Discharge Time(8/20μs)

5KA

Max Discharge Current(8/20μs)

10KA

Voltage Protection Level(10/700/μs)

15V

Insertion Resistance

≤4.3Ω

Insertion Loss

≤0.2dB

Standing-Wave Ratio (SWR)

≤1.2

Bandwidth

0.3-10M

Transmission Rate

10M

Response Time

≤1nS



Power

Standard Operating Voltage

12V DC

Max Continue Operating Voltage

20VDC

Nominal Discharge Current

10KA

Max Discharge Current

20KA

Limited Voltage

25V

Rated Load Current

15A

Leakage Current

5μA

Response Time

≤25ns

Signal Control

Nominal Operating Voltage

8V

Max Continue Operating Voltage

12V

Nominal Discharge Current(8/20μs)

5KA

Max Discharge Current (8/20μs)

10KA

Rated Load Current

3A/5A

Response Time

1ns

Insertion Loss

≤0.2dB

Insertion Resistance

≤4.3Ω

Bandwidth

(0~10)M

Transmission Distance

10MHz

Protection

Housing Protection

Ip20

Mechanical



Dimensions (L*W*H)

110*70*45mm

 Housing

Aluminum alloy

Body Color

Blue

Net Weight

295g

Environmental



Operating Temperature

-20º~55º C

Relative Humidity

0~95% (non-condensing)

Storage Temperature

-40º ~ 85º C
