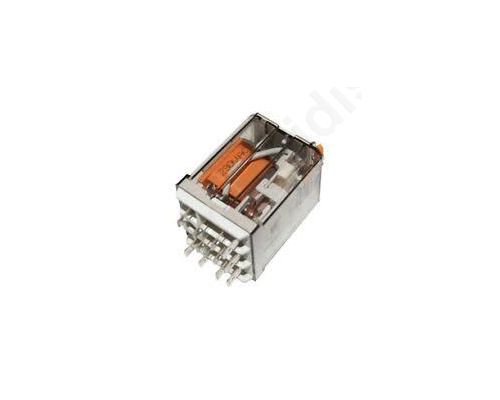

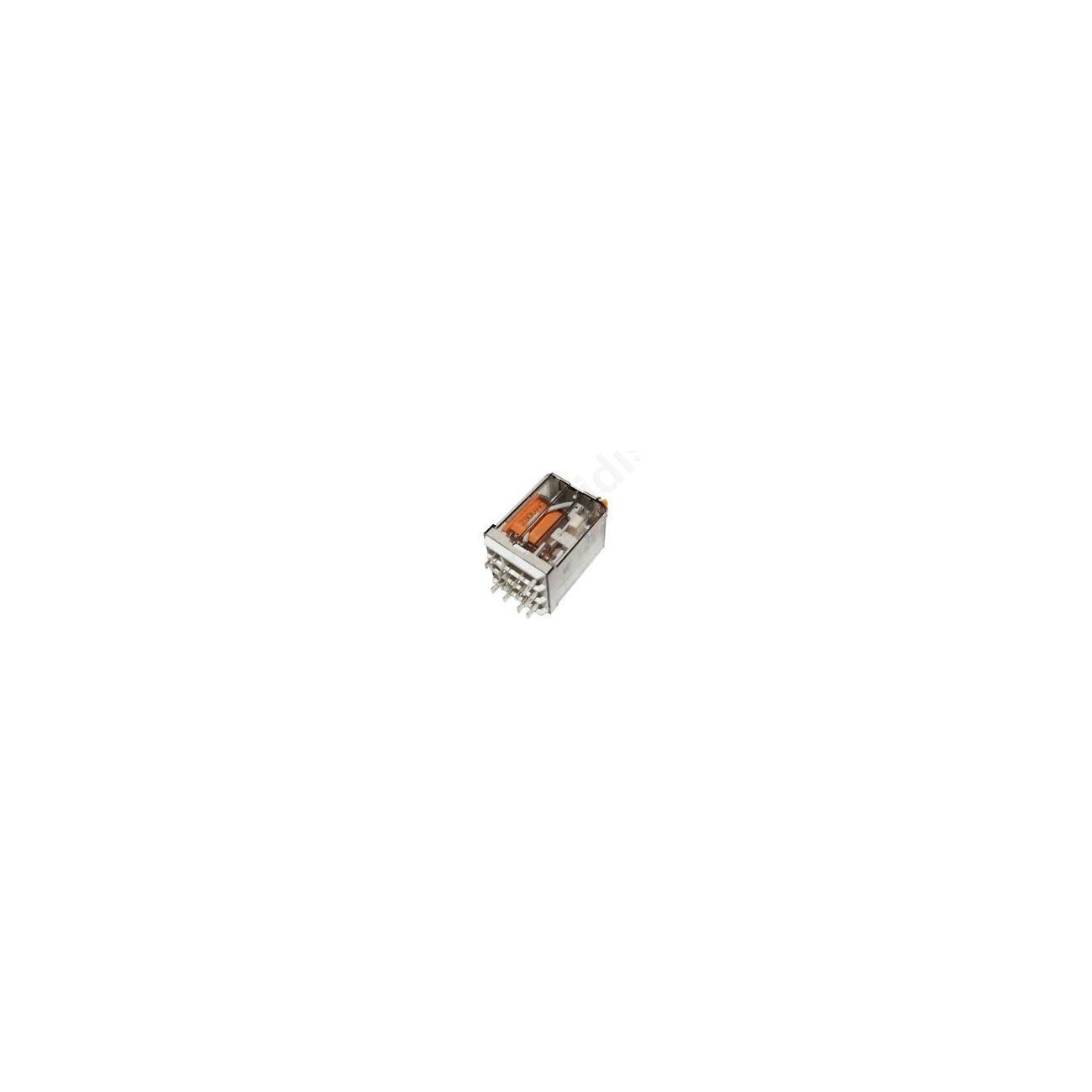

ΡΕΛΕ ΗΛΕΚΤΡΟΜΑΓΝΗΤΙΚΟ 24VDC 12A/250VAC 12A/30VDC

Manufacturer FINDER
Type of relay electromagnetic
Contacts configuration DPDT
Rated coil voltage 24V DC
AC contacts rating @R
(at resistive load) 12A / 250V AC
DC contacts rating @R
(at resistive load) 12A / 30V DC
Contact current max. 20

Manufacturer FINDER
Type of relay electromagnetic
Contacts configuration DPDT
Rated coil voltage 24V DC
AC contacts rating @R
(at resistive load) 12A / 250V AC
DC contacts rating @R
(at resistive load) 12A / 30V DC
Contact current max. 20A
Switched voltage max. 220V DC, max. 400V AC
Relay variant industrial
Mounting socket
Relay series 56.32
Operating temperature -40...70°C
Body dimensions 27.7x20.7x37.7mm
Coil resistance 600O
Coil current 40mA
Relay features test button with blocking function
Contact material AgNi
Coil power consumption 1W
Leads 4,8x0,5mm connectors
