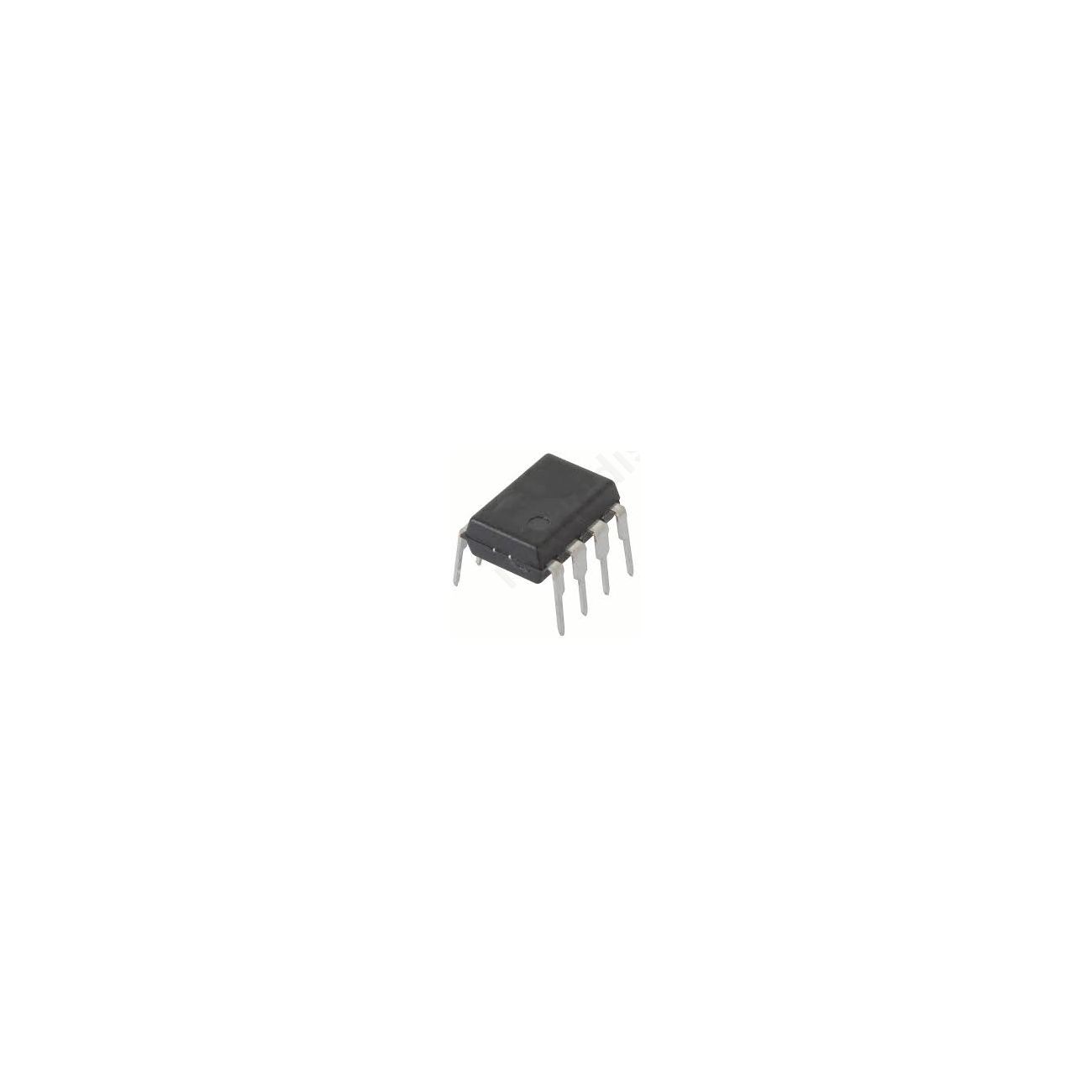

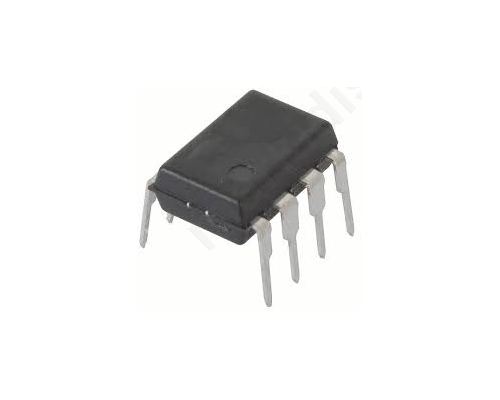

LM301AN - OP AMP, GENERAL PURPOSE, DIP8, 301
Click to enlarge
Share:
- Manufacturer: FAIRCHILD SEMICONDUCTOR
- Item Code: 000003016022
- Help Code: LM301AN
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
Maximum Operating Temperature +70 °C
Number of Channels per Chip 1
Length 9.27mm
Typical Slew Rate 10V/΅s
Typical Voltage Gain 104 dB
Brand Texas Instruments
Power Supply Type Dual
Package Type MDIP
Mounting Type Through Hole
Minimum Operating Temperature 0 °C
Width 6.35mm
Typical Input Voltage Noise Density 15nV/?Hz
Rail to Rail No
Height 3.3mm
Pin Count 8
Dimensions 9.27 x 6.35 x 3.3mm
Typical Dual Supply Voltage ±12 V, ±15 V, ±9 V
