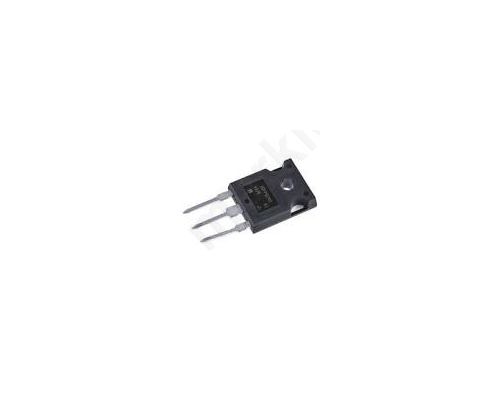

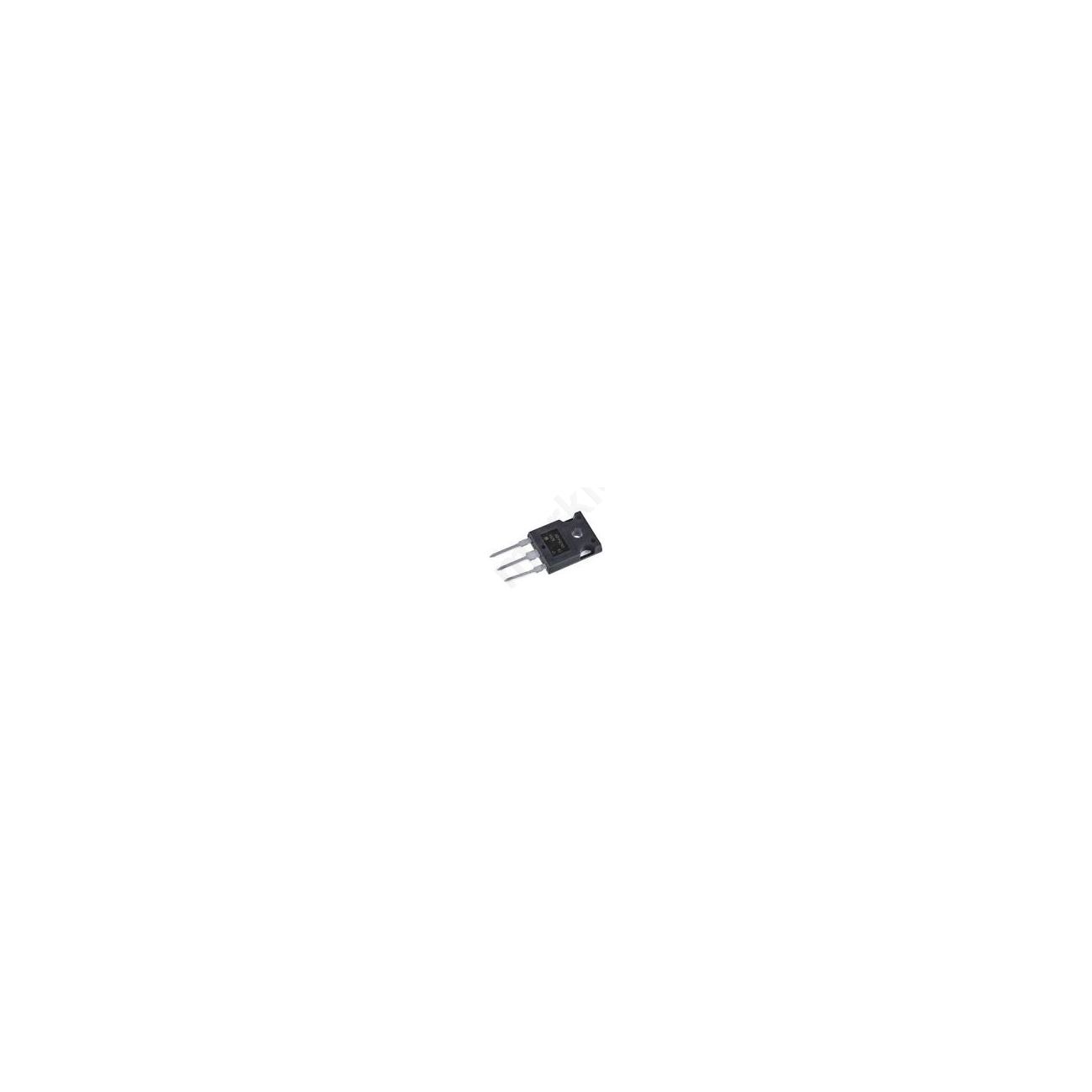

P-channel Mosfet IRFP9240 12A-200V

Maximum Operating Temperature +150 °C
Number of Elements per Chip 1
Length 15.87mm
Transistor Configuration Single
Typical Turn-On Delay Time 14 ns
Brand Vishay
Typical Turn-Off Delay Time 39 ns
Maximum Continuous Drain Current 12 A
Package Type TO-247AC
Maximum Power Dissipation 150 W
Mounting Type Through Hole
Minimum Operating Temperature -55 °C
Width 5.31mm
Minimum Gate Threshold Voltage 2V
Height 20.7mm
Maximum Drain Source Resistance 500 mΩ
Maximum Drain Source Voltage 200 V
Pin Count 3
Dimensions 15.87 x 5.31 x 20.7mm
Category Power MOSFET
Typical Gate Charge @ Vgs 44 nC @ 10 V
Transistor Material Si
Channel Mode Enhancement
Typical Input Capacitance @ Vds 1200 pF@ 25 V
Channel Type P
Maximum Gate Source Voltage ±20 V
