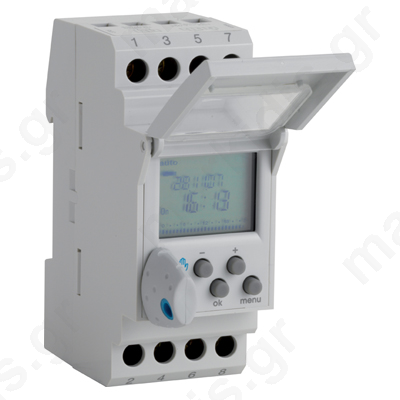

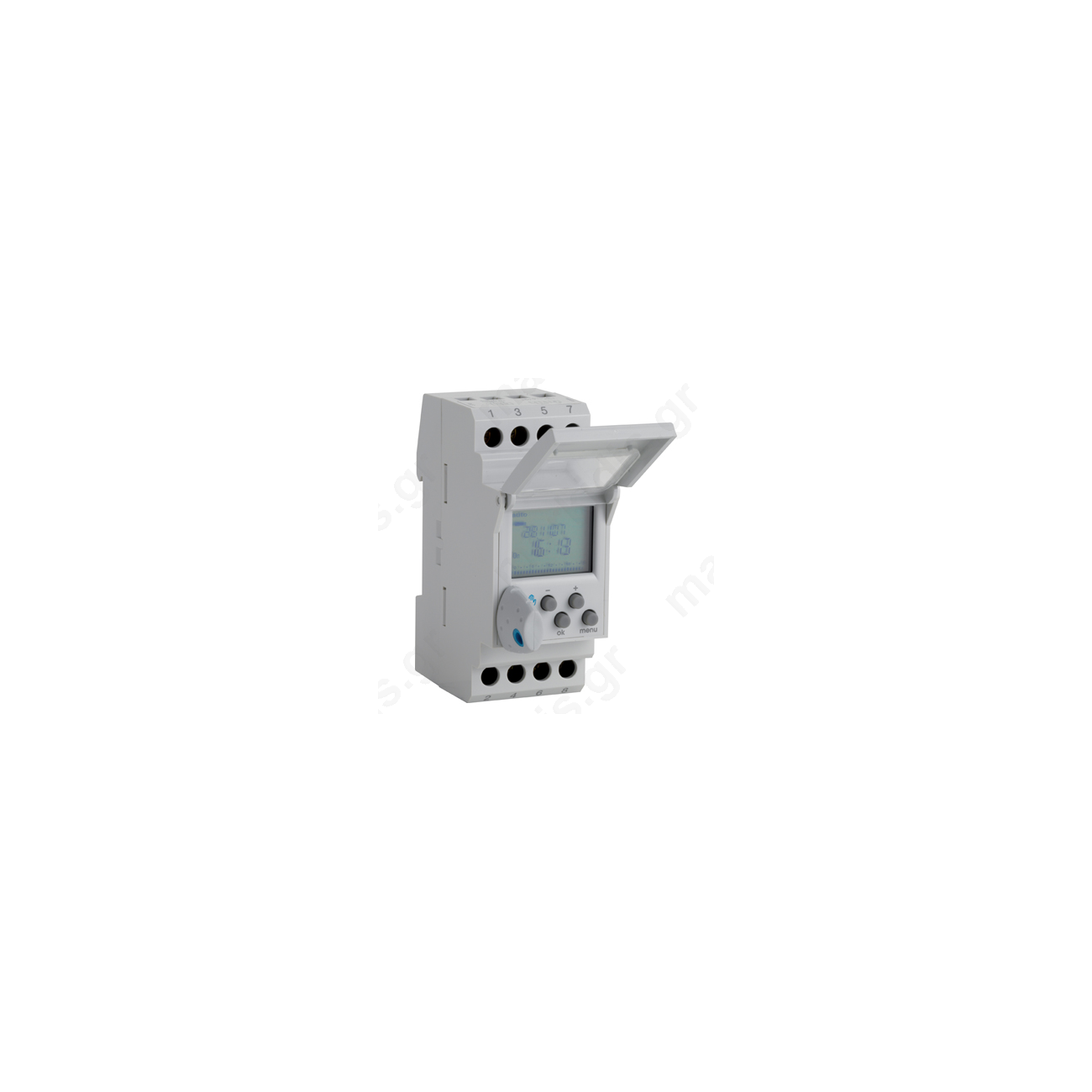

EG103E 1 channel digital time switch weekly cycle, Evolution
Click to enlarge
Share:
- Manufacturer: HAGER
- Item Code: 693052710001
- Help Code: EG103E
-
Availability:
In Stock
Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
Item Description
| Technical Characteristics | |
|---|---|
| Type of programming: | digital |
| Cycle: | weekly |
| Shortest switching time: | 1 mn |
| Type of contacts: | 1 changeover |
| Rated operational AC voltage: | 195/230/264 V |
| Supply failure reserve: | 5 years |
| Breaking capacity: | 16A 250V AC1 |
| Max. power with incandescent lamps: | 2300 W |
| type of connection: | with screw |
| Number of modules: | 2 |
| Acceptable current rating with AC1: | 16 A |
| Connection cross-sect. flexible cable: | 1 / 6mm² |
| Connection cross-sect. rigid cable: | 1,5 / 10mm² |
| Dissipated energy in cable: | 3.3 W |
| : | 40000 |
| European directive RoHs: | not concerned |
| European directive WEEE: | not concerned |
| Fixing mode: | Din-Rail |
| Frequency: | 50 Hz |
| Number of channels: | 1 |
| Number of contacts: | 1 |
| Number of program steps: | 56 |
| Operating temperature: | -5 to 45 °C |
| Storage temperature: | -20 to 70 °C |
| Protection index IP: | 20 |
| Summer / Winter time change: | automatic |
| Type of programmable thermostat: | Digital |
| holidays program: | 1 |
