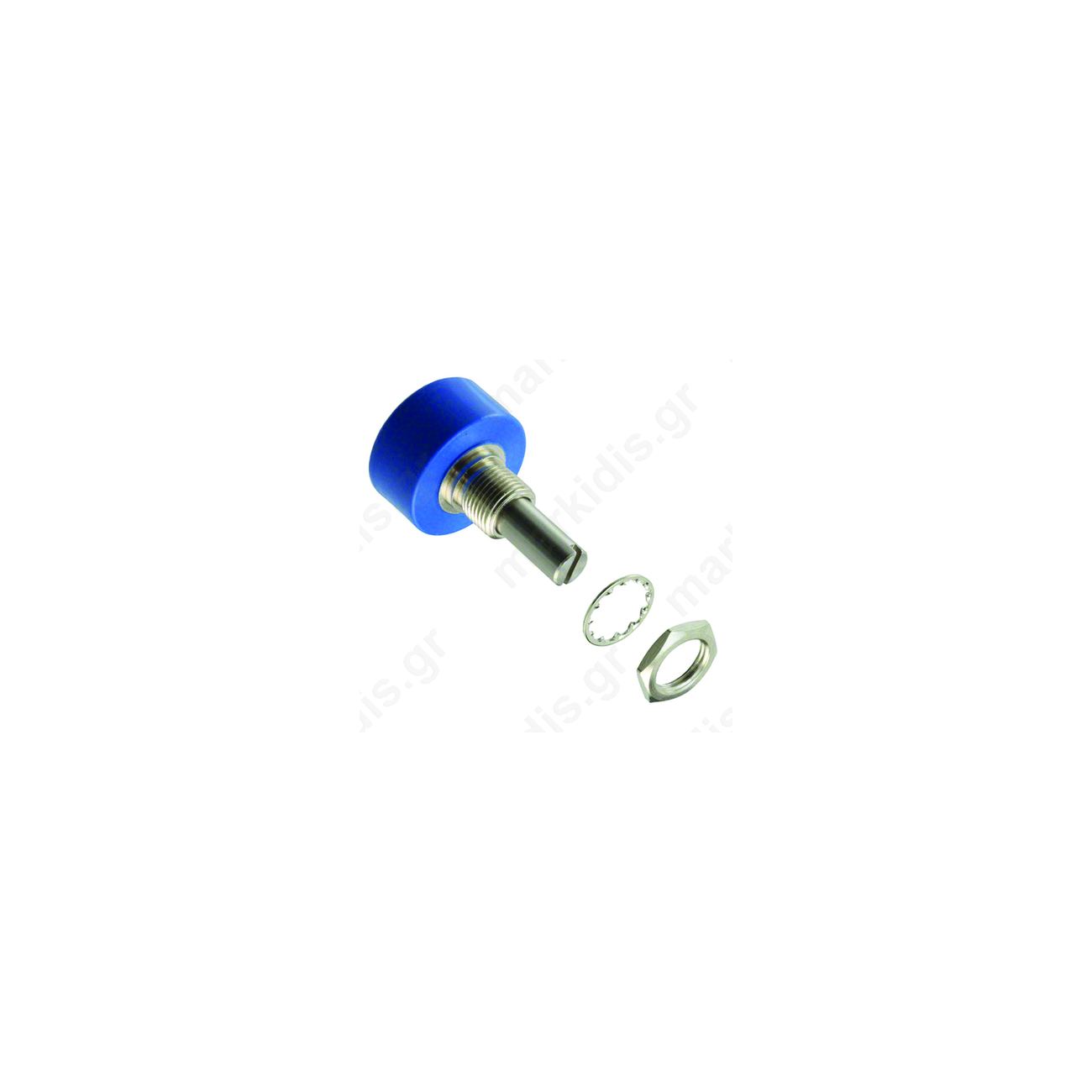

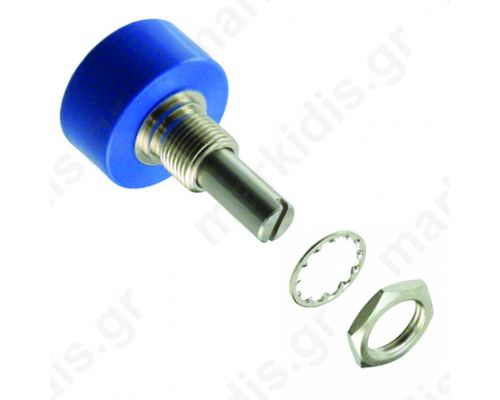

Potentiometer with a 6.35 mm Dia Shaft Continuous-Turn 1ΚΩ

 Click to enlarge


      Share:

Manufacturer BOURNS Type of potentiometer shaft Kind of potentiometer single turn Resistance 1kO Tolerance ±15% Power 1W Potentiometer features without limiters Characteristics linear Shaft diameter 6.35mm Track material plastic Shaft

  • Manufacturer: BOURNS
  • Item Code: 530049310004
  • Help Code: 6639S-1-102
  • Availability: In Stock
    Important: For pick-up from our store service please contact us BEFORE you visit our store in order to avoid any inconvenience.
32.30€ 32.3
VAT included
Buy now WishList Compare
Product was successfully added to cart
Item Description


Mounting Type Panel Mount
Brand Bourns
Temperature Coefficient ±500ppm/°C
Dimensions 22.23 (Dia.) x 36.65mm
Maximum Resistance 1kΩ
Diameter 22.23mm
Maximum Operating Temperature +125°C
Shaft Diameter 6.35 mm
Minimum Operating Temperature -40°C
Termination Style Turret
Series 6639
Height 36.65mm
Potentiometer Type Linear
Number of Turns Continuous
Power Rating 1W
Mounting Hole Diameter 9.525mm
Tolerance ±15%
